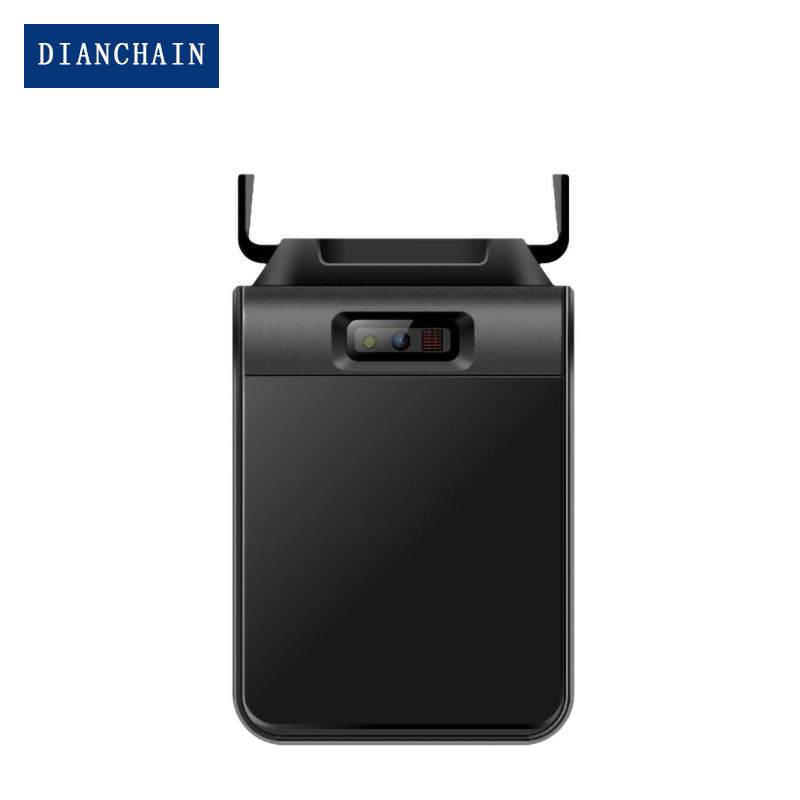

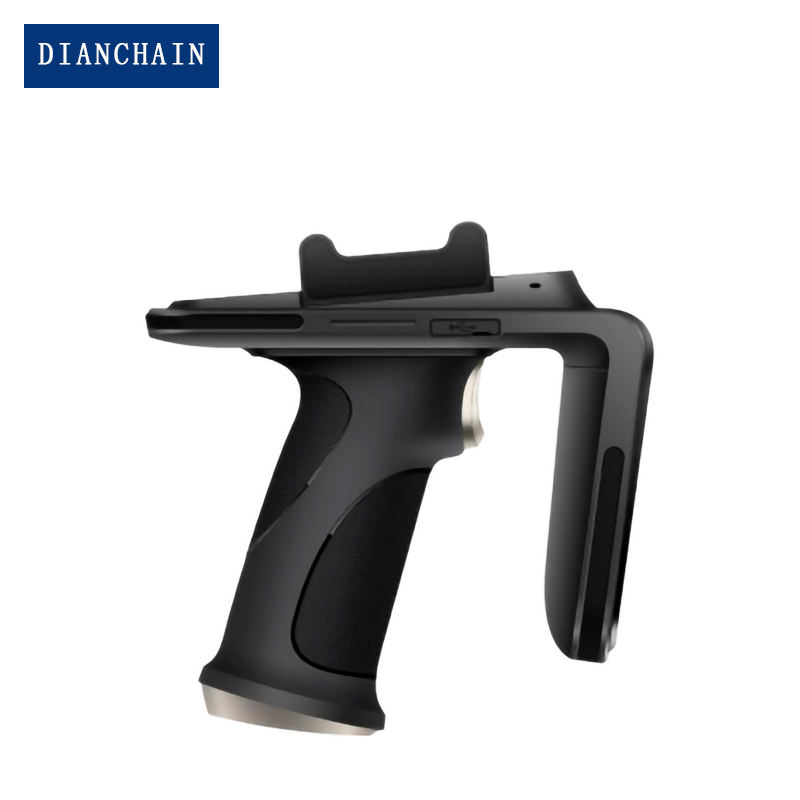

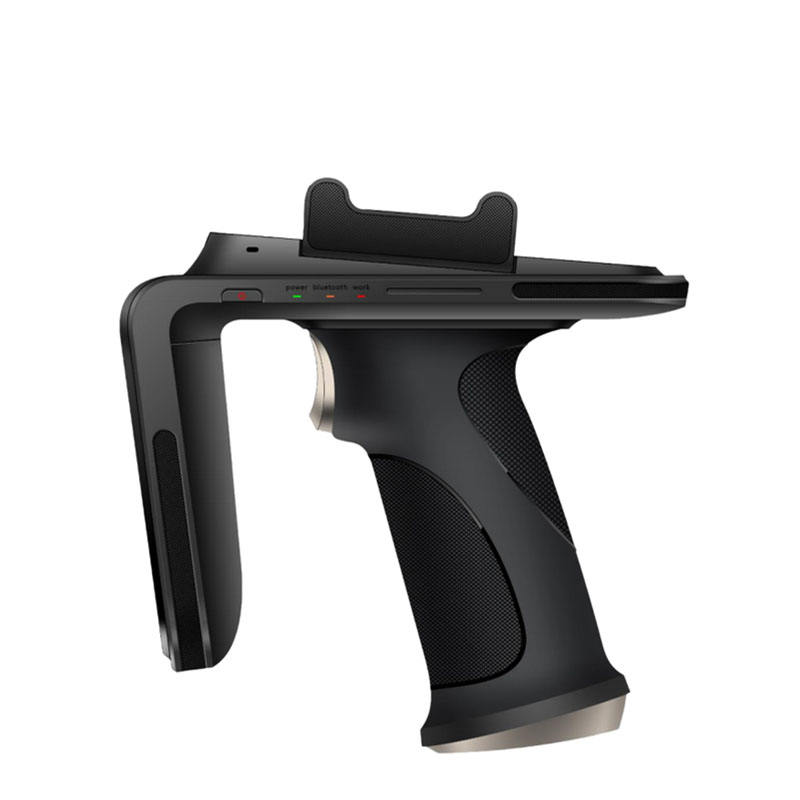

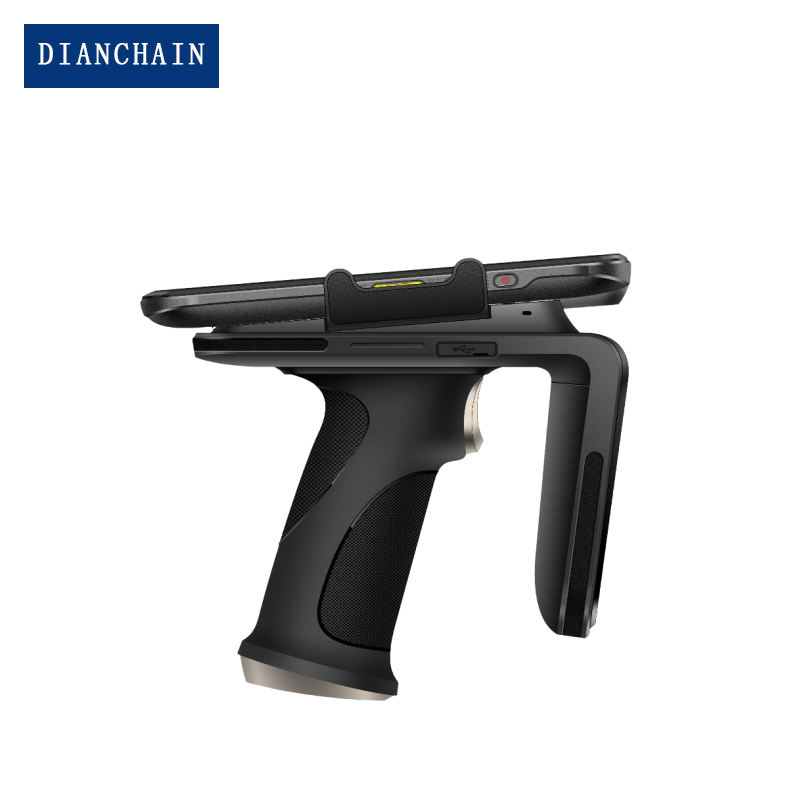

Blue-tooth Connection Multifunctional UHF Handheld For Android System Inventory RFID UHF Reader
| Categories | RFID Reader |
|---|---|
| Brand | DC-NFC Tag Manufacturer |
| category | RFID UHF Handheld |
| size | 164.2x80x24.3mm |
| frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Type | UHF |
| FOB port | Shenzhen |
| Terms of Payment | T/T |
| Update Time | Apr 05,2026 |
|
CPU:
|
Cortex- A53 1.45GHz Quad Core
|
||
|
Memory:
|
2G RAM/16GB ROM
|
||
|
Expansion Memory:
|
Support maximum 32G Micro SD (TF) card
|
||
|
Interfaces:
|
USB Type-C,OTG
|
||
|
Touch Screen: 5.2" IPS FHD (1920x1080) Display with Corning Gorilla Glass Audio: Speaker, microphones Battery: Built-in 8,000 mAh Rechargeable battery, the Non-removable battery design Expansion slots: SIM/Micro SD (TF) card Keyboard: 4 front keys, 1 power key,2 scan keys, 1 multifunctional key |
|||
|
Operating system: Android 6.0 With English OS Language: Java Programming environment/Tool: Eclipse/Android Studio RFID (UHF): 865~868 MHz or 920~925 MHz or 902~928 MHz Operating frequency RFID Module: CM-1 module based on Impinj Indy R2000 Protocol: EPC C1, GEN2/ISO 18000-6C Antenna: Circular polarized(4 dBi) Max.Power: 1W (+5dBm~+30dBm adjustable) Max.Reading range up to: 25m (indoors) or 10M (outdoors), depends on the tags and environment Max.Reading rate to: More than 200 tags/s, depends on the tags and environment Camera: 13M pixels, auto focus+flash light WiFi: IEEE802.11 a/b/g/n (2.4G and 5G) GPS: GPS (embedded A-GPS) AC adapter: Input:100-240V/50-60Hz Output:5.0V/2.0A Net size: 164.2x80x24.3mm/654g |
|||
