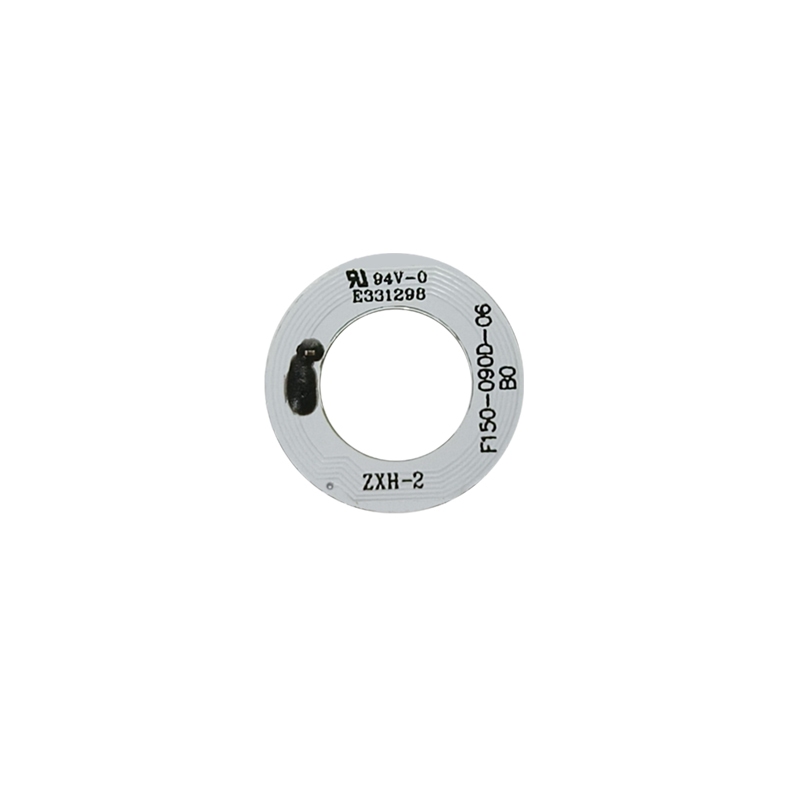

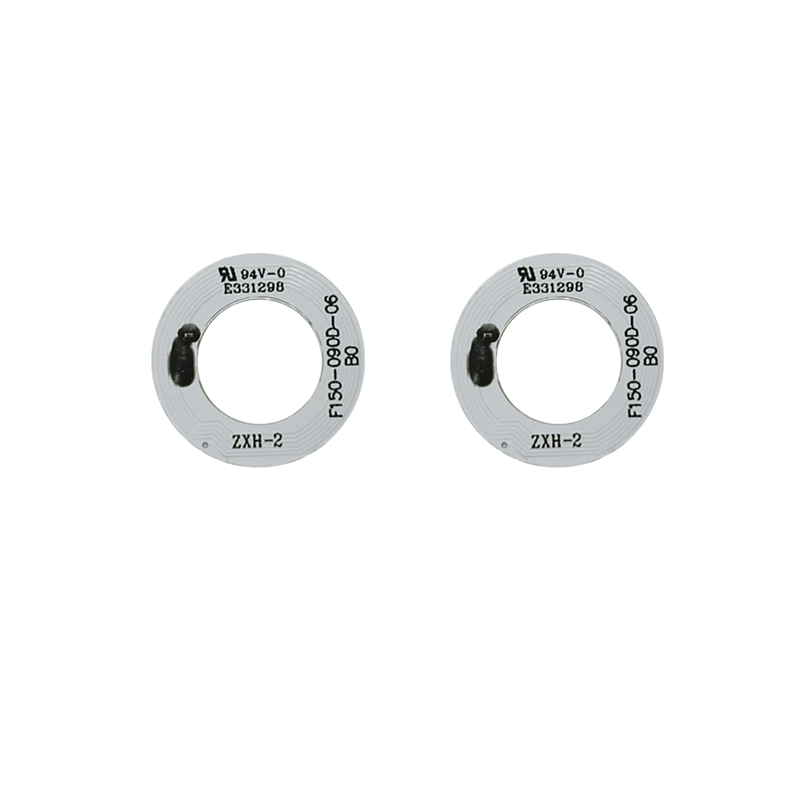

High temperature resistant RFID tag, high-frequency PCB coil, NFC electronic tag manufacturer, direct sales of F08 chip φ 15mm
| Categories | PCB NFC TagS |
|---|---|
| Brand | DC-RFID Tag Manufacturer |

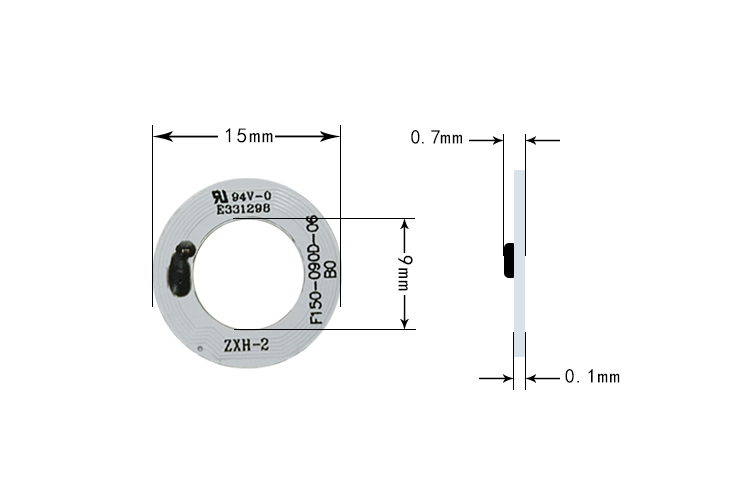

| size | External force 15, inner diameter 9Mm |
| thickness | 0.05-0.07mm |
| standard | 14443 -A |
| chip | F08 |
| frequency | 13.56MHZ |
| temperature resistance | 200 degrees /2 hours, 260 degrees 10-30 seconds |
| operating temperature | Minus 30 to 85 degrees |
| reading distance | About 1-10mm |
| FOB port | Shenzhen |
| Terms of Payment | T/T |
| Update Time | Apr 17,2026 |
Detail Information
External force 15, inner diameter 9MM PCB NFC TAG
Description
High Quality
External force 15, inner diameter 9MM PCB NFC TAG
●Application industry:
Applied to low-cost urban rail transit, various billing and payment cards, and data collection systems
●Characteristic：
F08 chip,External force 15, inner diameter 9mm ultra small NFC, high-temperature resistant NFC
External force 15, inner diameter 9MM PCB NFC TAG
Specification
|
Features
|
Contactless transmission of data and supply energy
|
||
|
Operating frequency
|
13.56 MHz
|
||
|
Data transfer
|
106 kbit/s
|
||
|
Data integrity
|
16-bit CRC, parity, bit coding, bit counting
|
||
|
1024x8 bits EEPROM storage unit 16 independent sectors with secure protection structure, supporting multiple applications Access permissions to storage units can be flexibly defined by users according to their own requirements Data retention time: greater than 10 years Scratching frequency: greater than 200000 times |
|||
|
Triple security certification Secure data communication For systems that use hierarchical keys, each sector can have two independent sets of keys Compared to older chips, it has improved its anti cracking ability
|
|||
External force 15, inner diameter 9MM PCB NFC TAG
Applications
External force 15, inner diameter 9MM PCB NFC TAG
FAQ
How can I get the External force 15, inner diameter 9MM PCB NFC TAG Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.
Can you offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed
What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.
What's your payment method?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.
How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
