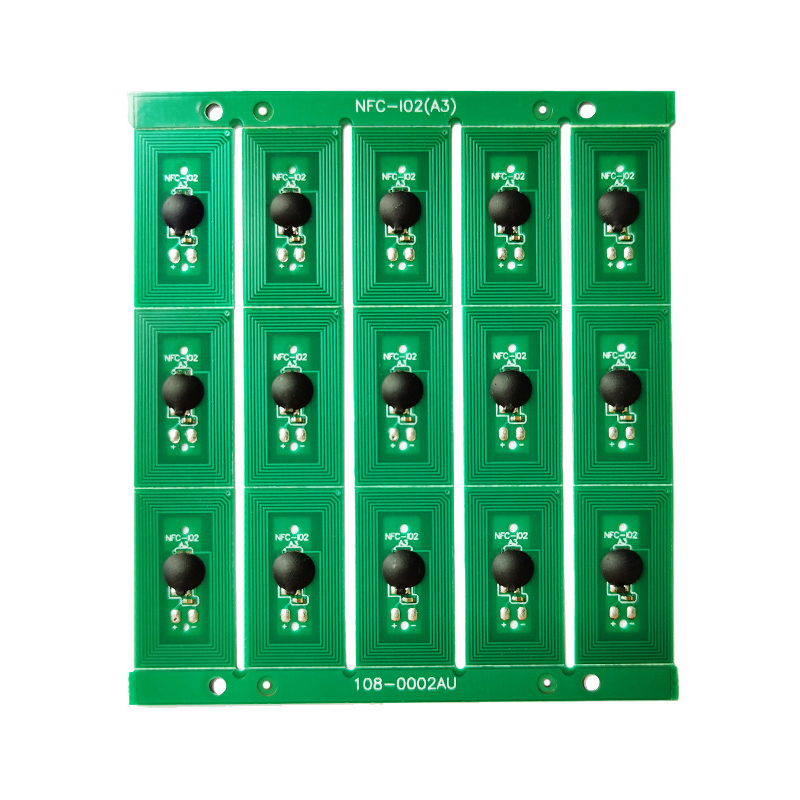

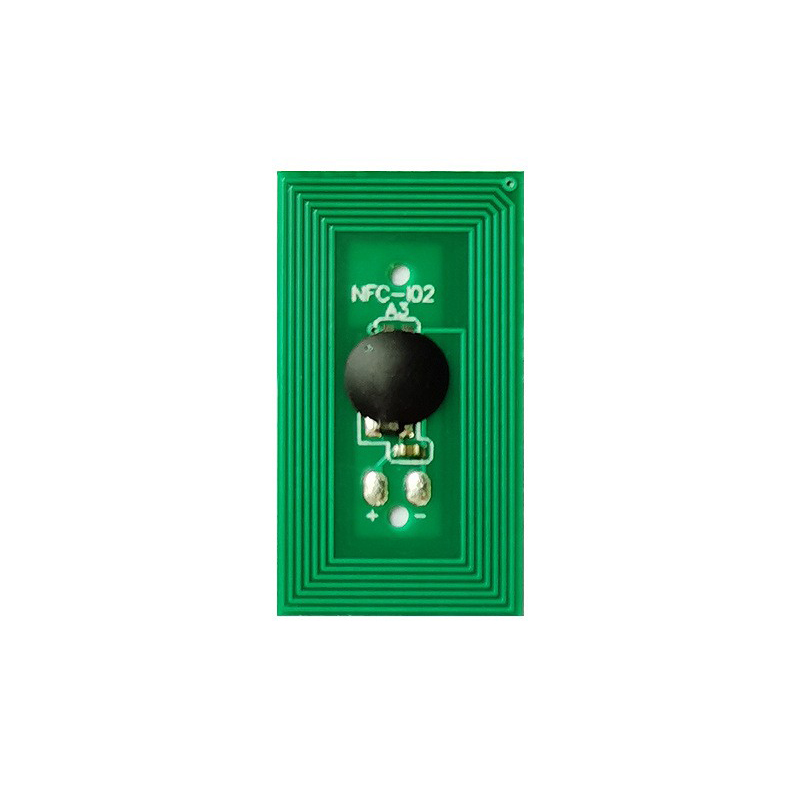

13.56MHz high-frequency NFC tag RFID high temperature and metal resistant PCB electronic tag 22 * 12mm

Categories	PCB NFC TagS
Brand	DC-RFID Tag Manufacturer

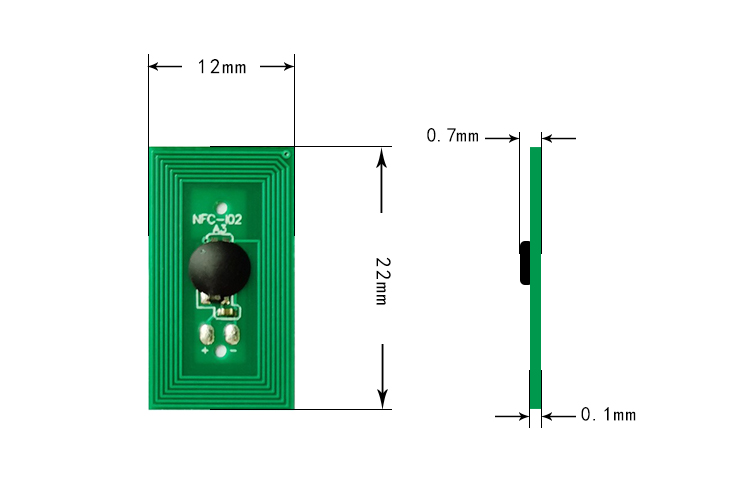

size	22*12Mm
thickness	0.05-0.07mm
standard	14443a
chip	FM11NT021
frequency	13.56MHZ
temperature resistance	200 degrees /2 hours, 260 degrees 10-30 seconds
operating temperature	Minus 30 to 85 degrees
reading distance	About 1-10mm
FOB port	Shenzhen
Terms of Payment	T/T
Update Time	Apr 17,2026

Contact Now

Detail Information

22*12MM PCB NFC TAG Description

High Quality 22*12MM PCB NFC TAG

●Application industry: Item identification, consumables management, gaming and entertainment, smart speakers

●Characteristic： FM11NT021 chip,22*12mm small NFC, high-temperature resistant NFC

22*12MM PCB NFC TAG Specification

Features	Contactless transmission of data and supply energy
Operating frequency	13.56 MHz
Data transfer	106 kbit/s
Data integrity	16-bit CRC, Parity check
The total capacity of EEPROM is 180 bytes, divided into 45 pages with 4 bytes per page The EEPROM user area has a capacity of 144 bytes, divided into 36 pages with 4 bytes per page The first 16 pages can be locked on a single page (one page corresponds to one lock positioning), and storage intervals after 16 pages can be locked on two pages (two pages correspond to one lock positioning) Data retention time: greater than 10 years Scratching frequency: greater than 1 million times
Each chip has an independent 7 byte UID, which cannot be rewritten The CC area has OTP function and tear resistance to prevent malicious unlocking. The storage area has a read-only lock function It has a password protected storage area function that can be selected and enabled, and the maximum number of password attempts can be configured.
