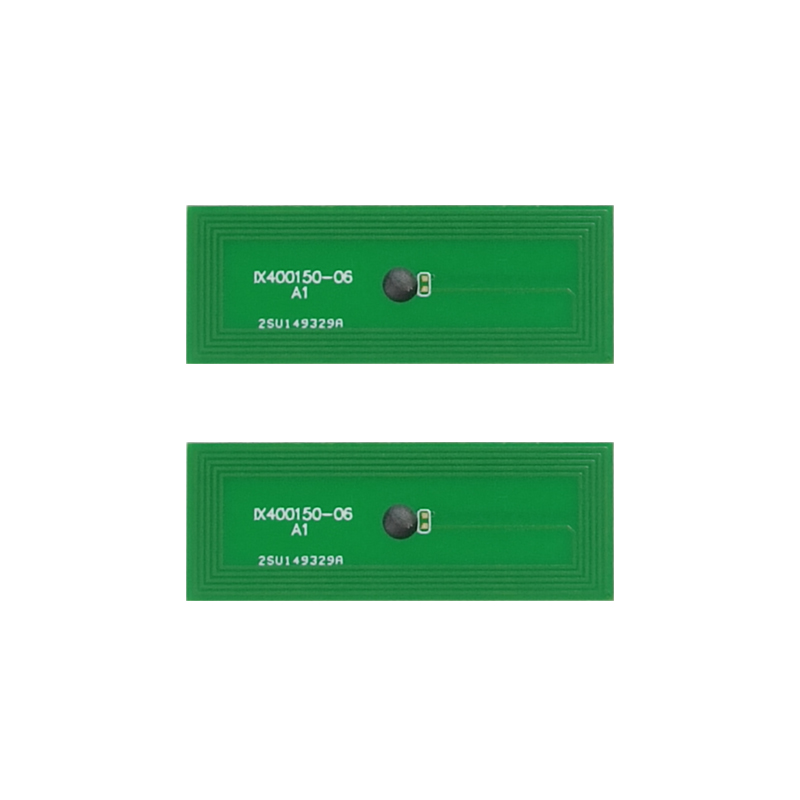

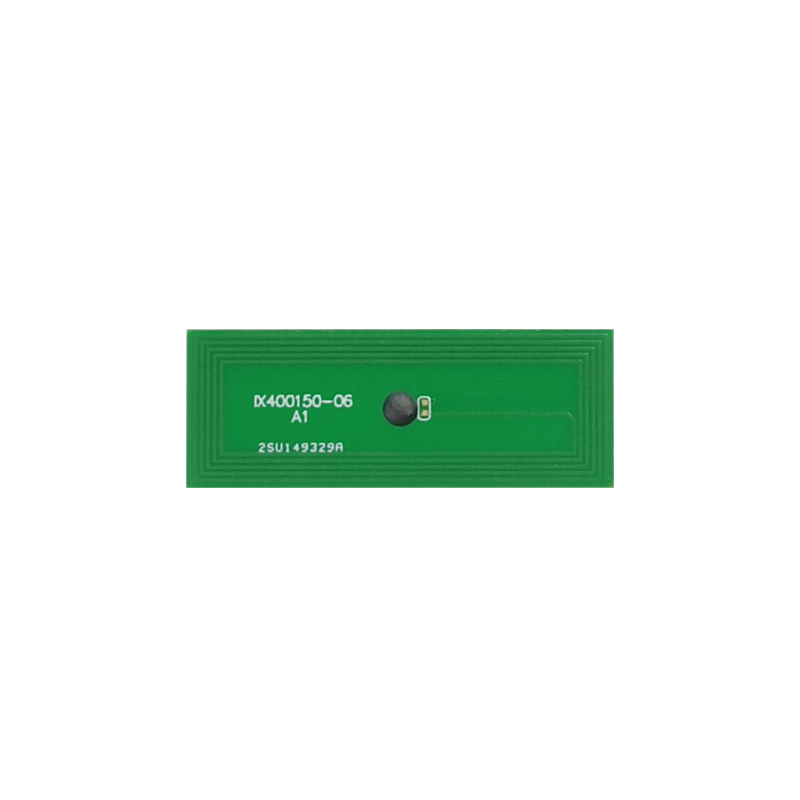

40 * 14.5mm high-frequency PCBNFC electronic tag ICODE SLIX chip Bluetooth pairing RFID asset tag

Categories	PCB NFC TagS
Brand	DC-RFID Tag Manufacturer

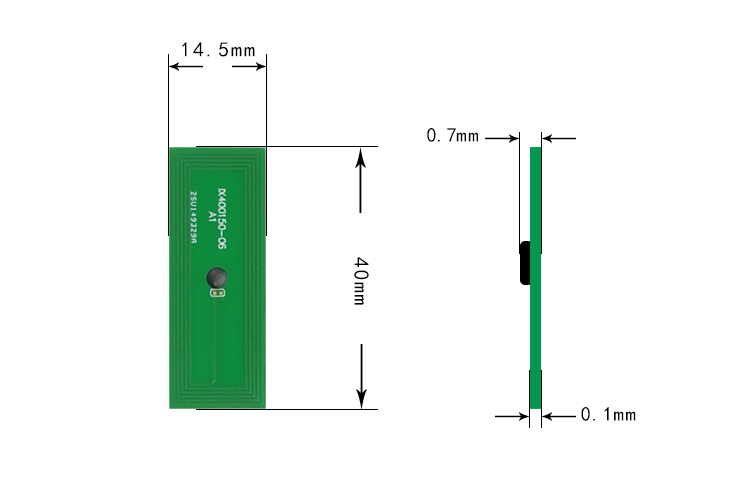

size	40*14.5Mm
thickness	0.05-0.07mm
standard	15693
chip	ICODE SLIX
frequency	13.56MHZ
temperature resistance	200 degrees /2 hours, 260 degrees 10-30 seconds
operating temperature	Minus 30 to 85 degrees
reading distance	About 1-10mm
FOB port	Shenzhen
Terms of Payment	T/T
Update Time	Apr 17,2026

Contact Now

Detail Information

40*14.5MM PCB NFC TAG Description

High Quality 40*14.5MM PCB NFC TAG

●Application industry: Library management, factory automation NFC, laundry NFC/RFID tags, chip consumables and accessory identification

●Characteristic： ICODE SLIX chip, 40*14.5mm ultra small NFC, high-temperature resistant NFC

40*14.5MM PCB NFC TAG Specification

Features	Contactless transmission of data and supply energy
Operating frequency	13.56 MHz
Data transfer	53 kbit/s
Data integrity	16-bit CRC, framing
Unique identifier (UID): The UID cannot be modified to ensure the uniqueness of each label. EAS and AFI functions are password protected The 32-bit EAS/AFI password can set the addressing tag to a mode, in which the EAS status and AFI value can only be changed after the correct EAS/AFI password is sent to the tag through the above command.
Target Applications library Single category label for pharmaceutical supply chain Used for anti-counterfeiting protection of consumer goods Industrial applications Asset and file tracking
